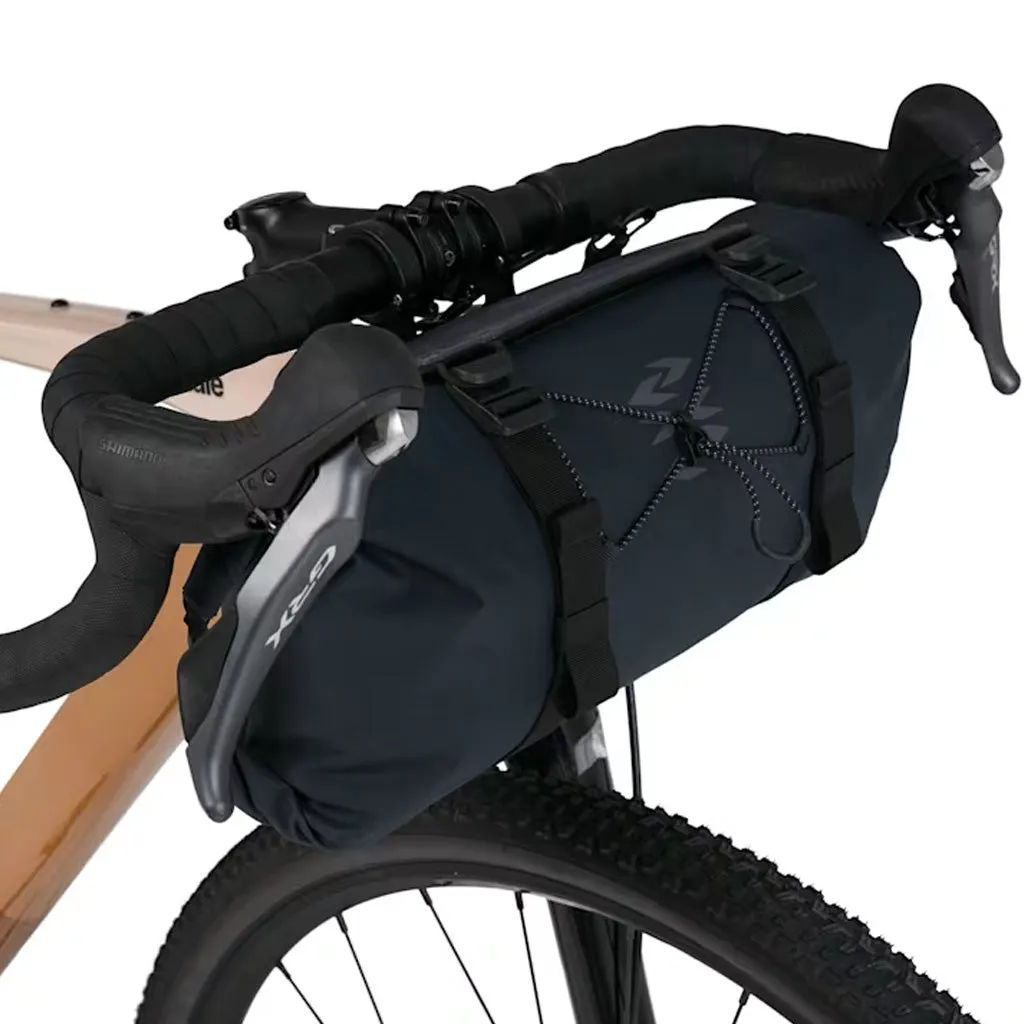

Robust, waterproof and super stable bracket-mounted bar bag. Designed for the rigours of bikepacking.

Key Features:

• Durable and 100% waterproof drybag - ripstop nylon with welded seams. Super-stable - Proprietary aluminium attachment bracket and cradle system ensures stability on rough terrain and prevents any bag movement

• Easy-to-use - cradle system allows for simple removal and attachment of the drybag
• Compatibility - the bag sits comfortably away from the handlebars, preventing frame rub, cable damage and front wheel clearance issues on smaller frames
• Comfortable - mount design enables multiple hand positions on drop bars
• For maximum protection, make sure to protect your frame when using the bag in muddy conditions
• Spares & repairs - replacement components for this product are available here

Fit: Can be used on road, gravel and mountain bikes (a variety of drop and flat/riser bars)

Details:

• Custom-made aluminium bracket securely attaches to the handlebars

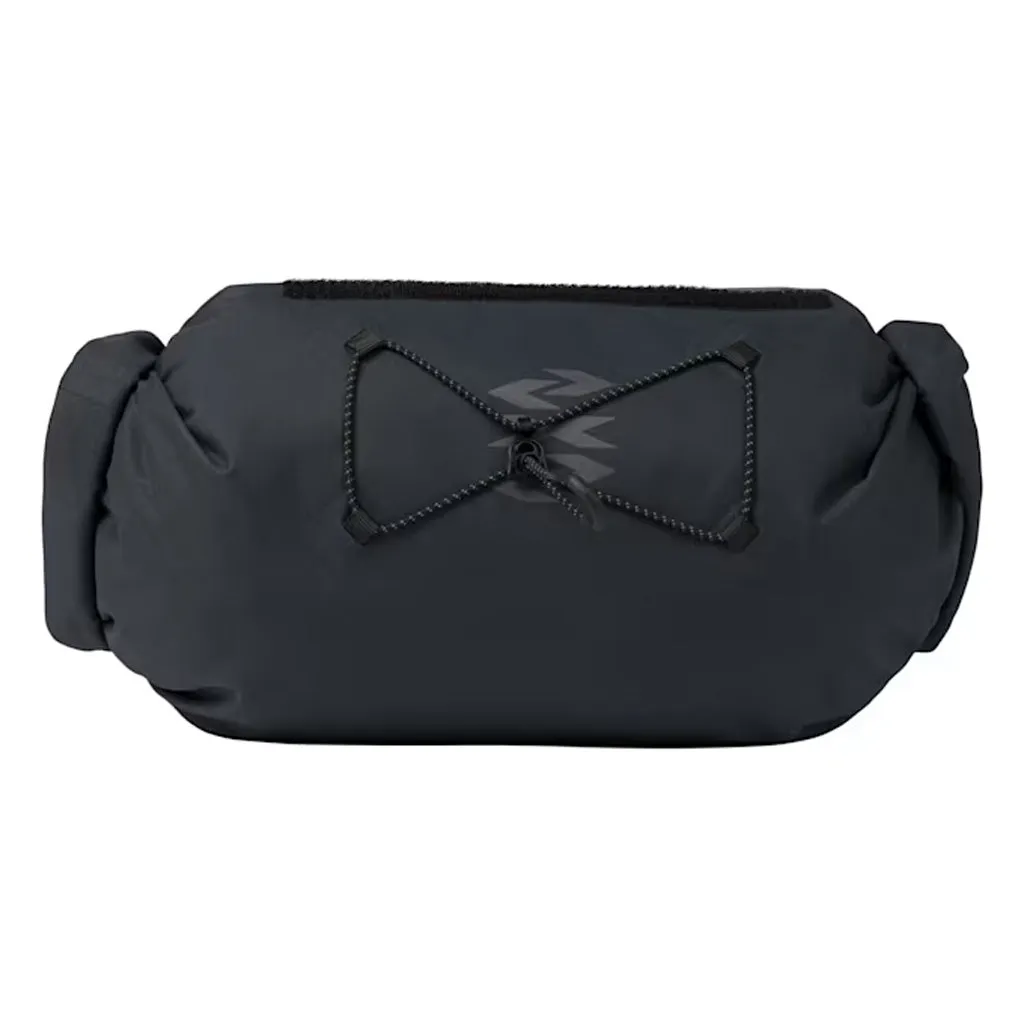

• Removable roll-top waterproof dry bag (10L volume) with air release valve
• Compatible with 35.0 mm or 31.8 mm drop and flat/riser handlebars (with included shims)
• Rapha tonal logo
• Adjustable bungee tie-down on the front
• Reflective EXP logo for visibility in the dark
• Mounting clamps width: 53mm inner-to-inner, 65mm centre-to-centre, and
• 77mm outer-to-outer (PLEASE NOTE: brackets do not fit aero/flat top handlebars)
• Maximum load weight 5kg
• Total system weight when empty: 510g

Materials:

Dry Bag - 100% Nylon with PU coating and TPU coating
Harness - Main material - 100% Nylon with PU coating

Care Instructions:

• Wipe clean with warm soapy water / detergent
• Do not wash in a washing machine

Install Instructions:

• Use a 4mm hex key to remove the bolts from the brackets.
• Select the correct spacers for your handlebars.
• If the handlebar diameter is 31.8mm, use the pre-installed thicker spacers.– If the handlebar diameter is 35.0mm, use the thinner spacers provided.
• Centre the stem in between the brackets, make sure the brackets and harness do not interfere with the safe operation of your bike.
• Tighten the bolts to an estimated 3–5Nm. Follow the Nm settings that are advised for your handlebars. Do not over-tighten. Check the tightness of the bolts periodically.
• Insert the dry bag into the harness by aligning the velcro loops from the dry bag to the velcro hooks on the inside of the harness. Fix custom hooks in loops at top, pull tight.
